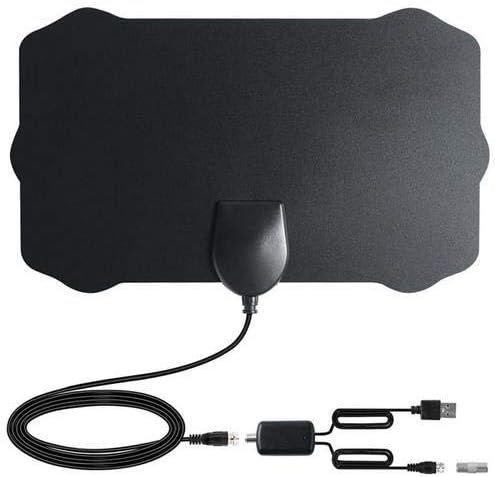

120 Miles Antena 1080P Digital HDTV Indoor TV Antenna with Amplifier Signal Booster TV Radius Surf Fox Antena TV Antennas Aerial (Black)

Description

Specification:1. Working Frequency : VHF (170-240Mhz) / UHF( 470-860Mhz)2. VSWR : ≤1.53. Impedence : 75 Ω4. LNA Gain : 25dB5. Reception Range : 120 miles (Max)6. Size : 335 x 235 x 0.6mm 7. Color : Black/white8. Cable : 1.5C - 2V / Lenth = 4m9. Connectors : Universal10. Polarization ： Linear11. Voltage : 5V12. Power Supply Connector : USB13. Operation Temperature : -45 ~ 85℃14. Storage Temperature : -45 ~ 85℃15. Compatible with 720p, 1080i, 1080p/ ATSCSet up guide : Step1 : Connect the end of attached coaxial cable to the ANT/IN connector on the back of the TV or Digital Converter Box, Plug the USV plug into the USB port of the TV or Digital Converber Box. Step 2 : Hand held the antenna, near the window, place it horizontally or vertically. Step 3 : In the TV’ s or STB ’ s setup menu, set the tuner mode to “ Antenna ” or “ Air ” For more detailed instructions, please refer to your TV manual. Step 4 : In the TV ’s or STB ’s setup menu, set TV to “ scan ” for channels. This can sometimes be listed as auto-program,auto-scan,channel search or channel scan. Consult the TV manual or detailed instructions. Step 5 : If reception is sporadic, try moving the antenna to another location and rescanning the TV until optimal postition is found. Step 6 : Fix the antenna at the optimal position you found.Pacakge Content : 1 x TV Antenna 1 x Signal Amplifier 1 x Universal Connector
