Installation:

1. Turn off the power and unplug all connectors; disassemble the main box.
2. If any other graphics card is installed on the motherboard, please unplug it first, and then insert the new graphics card into the PCI Express X16 slot provided by the motherboard.
3. If the graphics card comes with an additional power supply input interface, please find the corresponding plug on the host power supply, and insert the graphics card, please use these adapter plugs and connect the graphics card to provide enough power to the graphics card.
4. Tighten the fixing screws on the bezel of the graphics card to confirm that the graphics card is properly fixed.
5. Cover the case, reconnect all peripheral device connectors, and then insert the monitor connector into the corresponding interface on the graphics card.
6. If you need to use the TV OUT, High Definition Multimedia Interface, DisplayPort and other interfaces of the TV or display device, please first confirm whether the graphics card has the corresponding interface, if so, directly use the corresponding cable to connect the display device and the graphics card.

Specification:

Item Type: 550 TI Graphics Card
Material: PCB
Core Code and Process: GF116/40nm
Unity Shaders: 192
Core Frequency, Memory Frequency: 750, 3000mhz
Video Memory Capacity and Specifications: 2G, 128bit, GDDR5
Output Interface: DVI,VGA,
Bus Interface: Pci Express 1.1 x 16
Cooling Fan: Support

Package List:

1 x 550 TI Graphics Card
1 x Driver
1 x User Manual

Brand	Sanpyl
Package Dimensions	26.1 x 15.6 x 5.9 cm; 570 g
Item model number	Sanpyl3ehoyxm5c88324
Manufacturer	Sanpyl
Series	550 TI Graphics Card
Colour	default
Resolution	3840x2160
Memory Clock Speed	750 MHz
Graphics Coprocessor	NVIDIA GeForce GTX 550
Graphics Chipset Brand	NVIDIA
Graphics Card Description	Dedicated
Graphics RAM Type	GDDR5
Graphics Card Ram Size	2 GB
Graphics Card Interface	PCI-Express x16
Are Batteries Included	No
Item Weight	570 g
Guaranteed software updates until	unknown

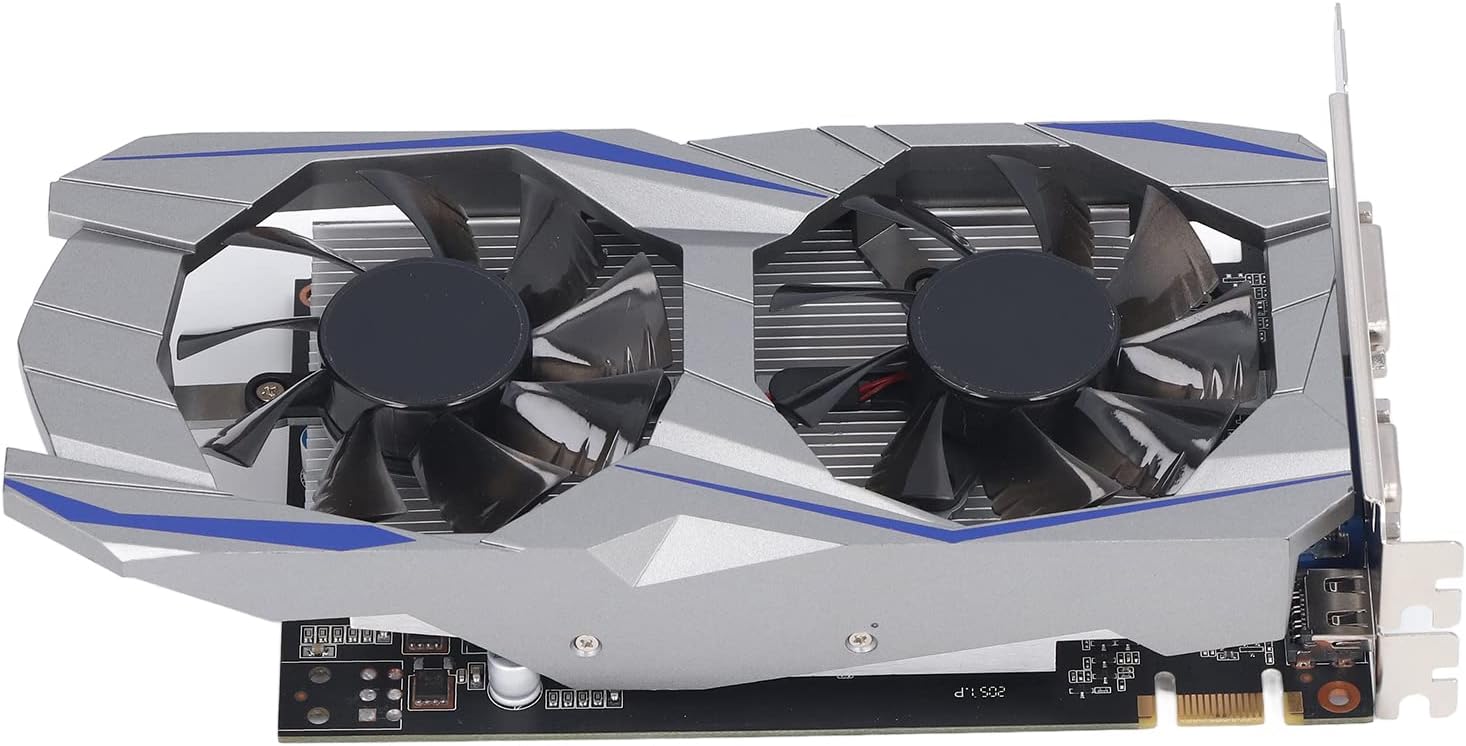

550 TI Graphics Card, 2GB GDDR5 128BIT 4K HDR, DVI VGA Output, PCI Express 1.1, Dual Fan Low Noise Desktop GPU Computer Gaming Graphics Card for Home Office
