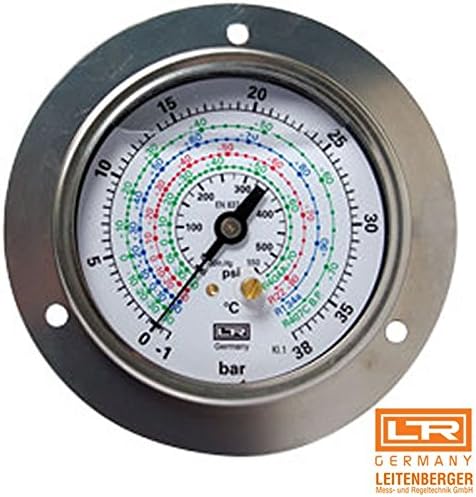

Leitenberger MGH HVAC Pressure Gauge - Manometer - R134a/R404a/R22 63 Refrigeration Parts (D.80 Low Pressure -1/+18 bar 14,50/260 psi)

Description

Leitenberger HVAC Pressure Gauge MGU with Glycerine 80 Diameter High Pressure (Red) ¼” SAE Bottom Features Range High: -1/+38 bar 14,50/500 psi Range Low: -1/+18 bar 14,50/260 psi Case Material: INOX Window: plexiglass Socket: 1/4 SAE or 1/8 NPT, bottom, OT 58 brass Elastic element: phosphor bronze Movement: gearing, OT 59 brass Dial: white Pointer: black oxidized aluminium Accuracy: cl. 1,6 Ambient-T: +15 / +65°C / +59/149 °F Process fluid-T: max. +65°C / +149 °F Process pressure: max. 75% of full scale value Over pressure: 25% of full scale value Protection: IP65 according IEC29 Over pressure: 25% of full scale value Country of Origin: Germany HVAC Pressure Gauge type MGU Options Diameter: 63, 80 or 100 Connection Size and Location: ¼ SAE, 18 NPT, Location Back What's included with the HVAC Pressure Gauge type MGU Free ShippingOne year Warranty
