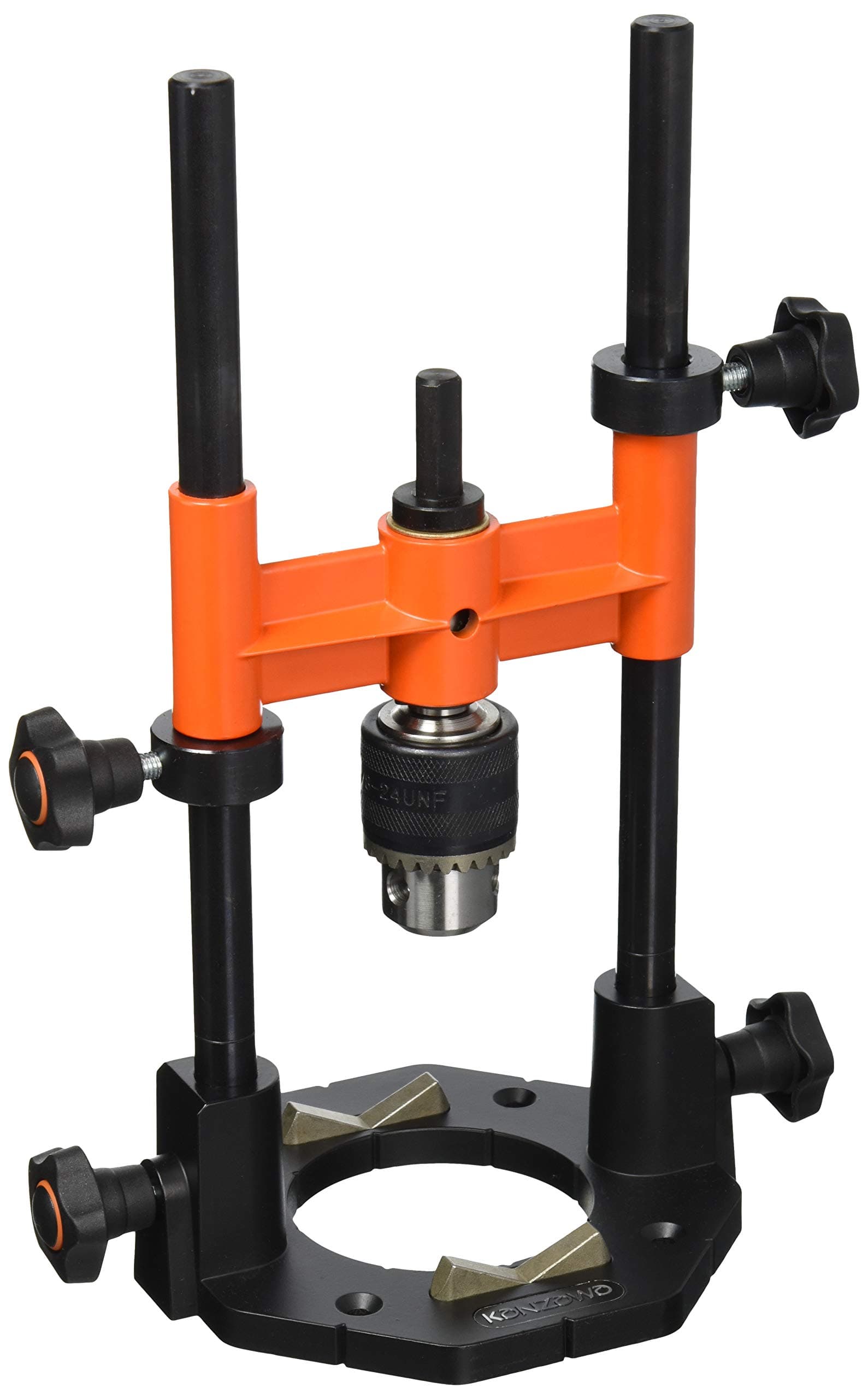

Kanzawa Drill guide DX K-802

Q: can I use a 7/16 drill bit with this?

The chuck in the Kanzawa guide is marked 3/8”. I tried a 7/16” drill and no go. When I tried a 7/16” drill bit from my Ryobi drill set which has a step down shaft at the chuck end, it fit and looks like it will work.

Q: My wife is a stone carver and sometimes needs a sculpture "pinned" to a base for display. Can I use this guide with a hammer drill on hard stone?

The chuck of the power drill is attached to the chuck of the Kanzawa tool, not the drill bit. So the forces of the hammer drill would be acting on the chuck of the Kanzawa and while it is a fairly precise tool, I would not say that it’s heavy duty. Perhaps you could use a masonry bit and smooth action drill with the Kanzawa tool in order to drill 1/4 to 3/8 inch deep. At that point, the path of the hole might be sufficient to guide the bit. Set the Kanzawa aside, chuck the hammer drill with the bit and drill deeper. Another possible thing that could injur the tool is the shaft of the chuck spins in a bushing that is somewhat open to overheating (there is an oil hole to lubricate the shaft) and stone dust could collect on the shaft causing damage.

Q: What is the hole diameter on the base.

Approximately 2-1/2” diameter.

Q: Will this chuck accept a 1/2" bit?

The product description indicates that it has a 10mm chuck so I'd say no as 1/2" = 13mm. You might be able to retrofit a 13mm chuck if you must use this bit; if you can use another bit the cheaper option is probably to look for a reduced shank drill bit (10mm to 13mm). I don't have this guide but have something similar - I just fitted a 13mm chuck but am mindful that the rest of the system is designed around the 10mm chuck. Don't be too agressive with it and nothing should break! Good luck.

3.6/5

Product ID: 210607755

Secure Transaction

Details

Brand
神沢鉄工
Material
Aluminum
Item Diameter
1E+1
Compatible Devices
Drilling
Capacity
0.39 Inches

🔩10mm Chuck

⚖️1,350g Weight

⚙️130mm Stroke

Frequently Bought Together

Kanzawa Drill guide DX K-802

XFasten Double Sided Woodworking Tape, 1-Inch by 36-Yards, 3-Pack - Double Face Woodworker Turner's Tape for Wood Template, Removable & Residue Free

Wood Glue Dispenser, 16 Oz Btl, Drip less

Description

🔧 Elevate Your DIY Game with Precision and Ease!

CUSTOMIZABLE DEPTH - Easily adjust the stopper for precise hole depth control.
SCRIBED BASE LINES - Find the center quickly with clearly marked scribed lines.
USER FRIENDLY DESIGN - Large diameter thumbscrews ensure effortless tightening.
PRECISION ENGINEERING - Crafted from lightweight die-cast aluminum for durability and ease of use.
VERSATILE COMPATIBILITY - Compatible with 10mm drill chucks and shanks for diverse applications.

The Kanzawa Drill Guide DX K-802 is a professional-grade tool designed for precision drilling. Made from lightweight and durable die-cast aluminum, it features adjustable depth control, user-friendly thumbscrews, and a scribed base for easy centering. Weighing just 1,350g, this drill guide is perfect for both seasoned professionals and DIY enthusiasts looking to enhance their toolkit.

Specifications

Handle Type	thumbscrew
Included Components	Chuck Key
Lock Type	手動
Global Trade Identification Number	04976226802017
Manufacturer	Kanzawa
Part Number	K-802
Item Weight	3.56 pounds
Product Dimensions	10.2 x 6.1 x 2.2 inches
Item model number	K-802
Color	Black Orange, Black
Item Package Quantity	1
Cutting Diameter	1E+1 Millimeters
Batteries Required?	No

Have a Question? See What Others Asked

can I use a 7/16 drill bit with this?

My wife is a stone carver and sometimes needs a sculpture "pinned" to a base for display. Can I use this guide with a hammer drill on hard stone?

What is the hole diameter on the base.

Will this chuck accept a 1/2" bit?
