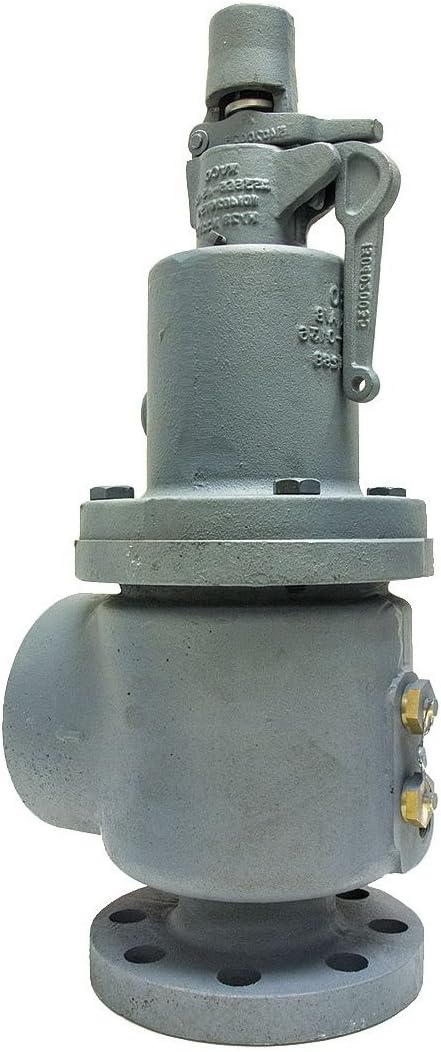

1-1/2" Kunkle Pressure Relief Valve 6252FJG01-AS0100 250# Flg Iron, 100 PSI Steam ASME Sec I
Product ID: 154979342
Description
- The Kunkle Model 6252FJG01-AS0100, Pressure Relief Valve, is excellent for relieving overpressure in steam boilers, steam generators, tanks, receivers and separators. This Safety Valve is for ASME Code I Service. The valve has a set pressure for relief at 100 PSI.
- Brand Name|Kunkle MFR Part Number|6252FJG01-AS0100 Item|Steam Relief Valve Service|Steam ASME Section I
- Item|Steam Relief Valve Service|Steam ASME Section I Inlet Connection Flanged|1-1/2" Outlet Connection FNPT|2-1/2" Body Material|Cast Iron A126
- Inlet Connection Flanged|1-1/2" Outlet Connection FNPT|2-1/2" Body Material|Cast Iron A126
- Orifice|1.414 Set Pressure PSI|100 Working Temperature|-20 Deg F to 406 Deg F Standard/Approvals|Steam ASME Section I
Kunkle Model 6252 Safety Relief Valve (SRV) is designed for steam relief through a side outlet port. These valves are used for ASME Code I Steam Service. Working well in many steam production or delivery applications. Heavy Duty Cast Iron A126 Body with stainless steel semi-nozzle, trim & disc. Please note that ASME code valves made from cast iron A126 may not be used in lethal or flammable service. The Series 6252 valve is set to the pressure listed in the item title.Each valve is tested and inspected for pressure setting and leakageThis is a long service life valve due to the extra heavy bodyLapped seatsHeavy Duty Lift Lever AssemblyExact Blowdown Control with Dual Control RingsBolted Bonnet for easy access to maintenance
Specifications
| ASIN | B01MCVETAV |
| Brand | Kunkle Pressure Relief Valve |
| Brand Name | Kunkle Pressure Relief Valve |
| Connector Type | Flanged |
| Item Weight | 40 Pounds |
| Manufacturer | Kunkle Pressure Relief Valve |
| Manufacturer Part Number | 6252FJG01-AS0100 |
| Material | Iron |
| Material Type | Iron |
| Number of Items | 1 |
